4 CH Network Backup Security Mobile DVR Recoding Motion Detect For Police Vehicles / Taxi

China 4 CH Network Backup Security Mobile DVR  Recoding Motion Detect For Police Vehicles / Taxi supplier

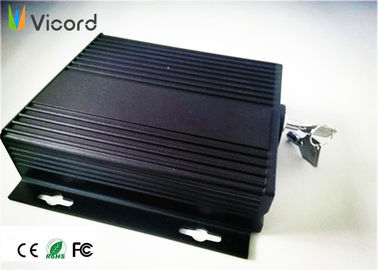

Large Image :  4 CH Network Backup Security Mobile DVR Recoding Motion Detect For Police Vehicles / Taxi

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Encode Capacity: 4ch D1 Real-time(default CIF) Decode Capacity: 2ch D1 Real-time
Record Storage: SD,MAX64G PTZ Control: One RS485、one RS232
Weight: 420g

4 CH Network Real Time Audio Recorder For Police Vehicles / Taxi





Product introduction



SD Mobile DVR is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.



Application



Logistics vehicles,escort vehicles, taxi,The school bus,Cargo transport vehicle,Mining vehicle,Construction vehicle,Police vehicles,Medical vehicles, bus,Family car



Product Feature

  1. support 4ch D1 real-time recording,2ch Dl real-time playback
  2. similar to Windows operating style
  3. Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs
  4. Video recording mode: Auto recording, alarm recording, timed recording, manual recording
  5. G. 711 audio compression, 4CH audio input, 1CH audio output
  6. Multiple language options, covers almost all main languages all over the world
  7. Support to connect speed sensor input, speed audio video synchronous recoding
  8. Professional Vehicle Power Supply, adapt 8-32V wide voltage input, provide in DV Out, Reverse voltage, overload, short circuit etc protection



SPECIFICATIONS





Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface

&

functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

Less than 10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
