Mini Vehicle Car GPS Tracker Real-time SOS SMS / GPRS with APP Car Control

China Mini Vehicle Car GPS Tracker Real-time SOS SMS / GPRS with APP Car Control supplier

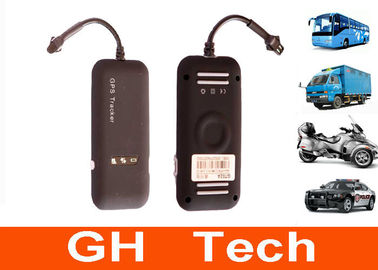

Large Image :  Mini Vehicle Car GPS Tracker Real-time SOS SMS / GPRS with APP Car Control

Product Details:

Place of Origin: China
Brand Name: gh
Certification: fcc rohs
Model Number: g-t005

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: FOB SHENZHEN
Packaging Details: 50pcs per carton
Supply Ability: 50000pcs per/month
Contact Now
Detailed Product Description
Battery: Built In 220MAh GPS Chip: SIRF Star 3
Applying Field: Motorcycle,car,truck And Other Vehicles Voltage: 7-50V
APP: Android And IOS

Mini Vehicle Car GPS Tracker Real-time SOS SMS / GPRS with APP Car Control









Specification:

  • GPS Chip: SIRF Star 3
  • GMS frequency: 850/ 900/1800/1900Mhz
  • GPS sensitivity: 159dBm
  • GPS Datum: WGS-84
  • GPRS: Class 12, TCP/IP build in GSM MODULE
  • GPS center frequency: L1, 1575.42MHz
  • GSM positioning accuracy: 50-200 Meter
  • GPS Accuracy: 10 Meter (2D RM )
  • Speed accuracy: 0.1 m/s
  • Charger: DC7~30V
  • GPS initialization: Cold boot <38s (Open sky), Warm boot <2s (Open sky)
  • Max. altitude: 18000m
  • Max. speed: 515m/s
  • Gravity acceleration: 4G
  • Voltage: Rechargeable 400mAh battery
  • Working Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Color: Black
  • Weight: 70g
  • Size: 90 x 50 x 15 mm



1. mini waterproof GSM GPRS GPS Tracker for Cars Motorcycles Trucks and other vehicles,

2. with a voltage of 7-50V voltage

3. Can connect with relay to control the car fuel / electricity.



Note :
  Pleasedo NOT reverse terminal SIM card;
 Terminal SIM card needs to open GPRS function;
 Please make sure that terminal SIM card has charge;
  Suggest using special GPS equipment flow card(only support GSM network)







This is a mini GPS tracker with quad frequency,9-70V DC,SOS which can be used on cars,trucks,motorcycles,taxis.bus and some other vehicles.





Specifications





Network

GSM: 850/900/1800/1900MHz

GPRS

Class 12, TCP/IP

Voltage

9-70V DC

Current



≈22mA(12vDC)

≈12mA(24vDC)

GPS fixed time

Cold start 30sec(open sky)

Warm start 29sec(open sky)

Hot start 5sec (open sky)

GPS fixed precision

10m (2D RM)

Temperature

-20 degree ~ +70 degree

Humidity

5% ~ 95% RH

Dimension

90.0(L)x45.0(W) x13.5(H)mm

Weight

80g



Mini Vehicle Car GPS Tracker Real-time SOS SMS / GPRS with APP Car Control







3. Installation comands



  1. Prepare
    1. SIM Card:  Please use a GSM SIM card.
    2. Before insert the SIM card, please make sure to turn off the device.
    3. Please make sure the GPRS can be used, if not, please connect Service Provider.
    4. Please make sure the Caller ID can be used.
    5. Then insert the SIM card.



  1. Installation

Please pay attention to the following matters:

  1. Concealed installation for avoid the thieves damage.
  2. Avoid install together with the RF source, such as reversing radar, alarm and other vehicle communication equipment.
  3. Can use ribbon or wide sponge strength double-faced adhesive stick to fix.
  4. Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position:

     Front windshield decorative below the covert,

Front panel (skin for non-metal material) around the shadow

Rear window below decorative





3.3 Relay connection comands





Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.

The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s other end (green line 30).

Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.

If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.









LED scintillation state meaning interpretation





LED

Scintillation state

Meaning

Red

Power LED

Shine 0.1 sec, dim 2 sec

Working

Shine 1 sec, dim 2 sec

Low power

Always dim

Power off or fault

Blue

GPS LED

Shine 0.1 sec, dim 2 sec

GPS Fixed

Shine 1 sec, dim 2 sec

GPS not Fixed

Always dim

Power off or fault

Yellow

GSM LED

Shine 0.1 sec, dim 2 sec

GSM ready

Shine 1 sec, dim 2 sec

GSM not ready

Always dim

Power off or fault





5.2 Location check





5.2.1 Get address by SMS from server





Command: where#

This function needs server support. If server not support, please ignore it.

If GPS fixed, the device replies address.

If GPS not fixed, the device replies: "unable to get the correct GPS data, please try again!"





5.2.2 Get location by Google map by SMS





Command: url#

If GPS fixed, the device reply: Google map’s location link

If GPS not fixed, the device replies: "Not fixed, the last fixed location is Google map’s location link"

If your mobile phone can connect to the Internet, you can open the Google map link to get the address of the device; also can get the address by the browser of computer for input the Google map link.





5.2.3 Vehicle management by server





User can login in server’s website to manage vehicles. You can get the account and password form vendors.





5.3 Alarm setting and cut off vehicle’s oil or power

5.3.1 Turn on or off stolen alarm





When turn on the device’s alarm, if the device was vibrated continuous, it will trigger the stolen alarm. The device will send alarm message and latitude and longitude to the service platform; and send alarm message and latitude and longitude to the center number by SMS and call the center number. If service center number doesn’t answer, the device will call six times.

Command: fortify,x#

    x is 1 means: Turn on alarm

x is 0 means: Turn off alarm





5.3.2 Alarm clear





When alarm was triggered, the device will call the center number, if you answer it, the device you want to clear it, you can send this command to the device.

Command: alarm#

Reply Message: "alarm has lift!"





5.3.3 Cut off vehicle’s oil or power





When the vehicle was stolen, you can cut off the vehicle’s oil or power by SMS.

Command: relay,x#

    x is 1 means: Cut off the vehicle’s oil or power success

x is 0 means: Recovery the vehicle’s oil or power





5.3.4 Alarm of cut off outside power





If the outside power was cut off, the device will trigger the power cut off alarm. The device will send alarm message and latitude and longitude to the service platform; and send alarm message and latitude and longitude to the center number by SMS and call the center number. If service center number doesn’t answer, the device will call six times.
