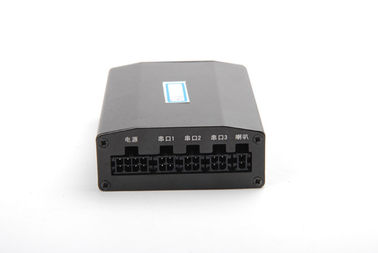

Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card

Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card
Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card

Large Image :  Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card

Product Details:
Place of Origin: Guangdong China
Brand Name: Dragon Bridge
Certification: CE,FCC,ROHS
Model Number: G-V209
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD FOB 59-75$
Packaging Details: Carton size 42*37*33CM Carton:30sets
Delivery Time: 1-2days for sample ,1week for bulk order
Payment Terms: Pay in advance, T/T, Western Union,PAYPAL
Supply Ability: 2000PCS per Month
Detailed Product Description
Working Volt: 9V -- 30V DC Net Weight: 0.13kg
GPS Module: SiRF III Solution GSM Chipset: SIMCOM GSM Chipset
Working Temp: -20℃ -- 75℃ Working Current: 100 MA – 250 MA(12V/DC)
Frequency: 850MHz/900MHz/1800MHz/1900 MHz Dimension: 90mm × 65mm × 25mm
High Light:

gps tracker device

,

gps cat tracker



Black 850MHz/900MHz/1800MHz/1900 MHz SiRF III Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card


products overview:

G-V209 is a GPS/GSM/GPRS based tracking device, specially developed and designed for vehicle real-time tracking and fleet management.
G-V209 has  inbuilt  GPS (SIRF Ⅲ )  and  GSM module  (SIMCOM 900)  to obtain accurate position data. This device utilizes its GSM capability to send position data to mobile phone or server based vehicle  tracking and fleet management
Device have voice input/output port, customer can connect a microphone to device and hidden it somewhere in the car for listening to the cabin; also can connect a louder speaker same time, to use the device as a telephone.

Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card 0

Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card 1


Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card 2
Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card 3

Portable Vehicle GPS Tracking Systems Black Mini Waterproof With Dual Sim Card 4





Highlights and function:



GPRS TCP/UDP and SMS Communication A GPS (Optional)
Track on Demand Track by Time Interval
Upload when Direction Change  GSM Blind A rea Memory
SOS Panic Button Geo-fencing A larm
Low Battery A larm Over Speed A larm
Power-cut A larm Engine Cut (Remote cut fuel / engine)
Temperature detect Fuel consumption
Take picture/Support TTS Fleet dispatching function(via SMS to send and receive command )




specification:

Name



Parameter



Dimension



90mm ×  65mm ×  25mm

Color

Black

Working voltage

9V -- 30V DC

Working current

100 mA – 250 mA(12V/DC)



Back-up battery life  time



Up to 7 hour



Weight



Tracker weight



0.13kg



Total packet



0.4kg



Working temperature

-20℃ -- 75℃



Moisture

≤ 93%(Non-water vapor condensation state)

GSM Frequency

850MHz/900MHz/1800MHz/1900 MHz

GPS Module

SiRF III  solution



GSM Chipset

SIMCOM GSM Chipset



GPS Sensitivity



-159Db



GPS Frequency



1575.42±1.023MHz



Receiving panel structure



GPS module 32-channel



Locating accuracy

< 5m (95%)



Cold start time

< 48s(in average)

Heat start time

< 10s (in average)

LED indicator light

usage of green / red dual-color LED ind icator light shows the GPS / GSM status



Our advantages:


1. Direct factory and strong R&D team

2. One-to-one afters-sales service and warranty 2 years

3. Certificate:CE,FCC,ROHS

4. 11 years specialize in gps tracker

5. Within 24 hours reply

6. Before &After Service ,One-stop service

7. Support 13 languages gps tracking system

8. Support Android/ IOS APP
