Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby

China Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby supplier

Large Image :  Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby

Product Details:

Place of Origin: China
Brand Name: GH
Certification: CE ROHS
Model Number: G-P300

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 50PCS/CARTON
Delivery Time: Sample deliver within 3 days
Payment Terms: T/T West Union Paypal
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description



Cell phone tracker online 850mAh mobile phone tracker  TCP UDP SMS cell phone tracker with SOS button 190 hours standby

Attention:
For this unit we do not offer platform,you need  to got your own tracking server,while we can offer protocol and guide you how to analyze the protocol.

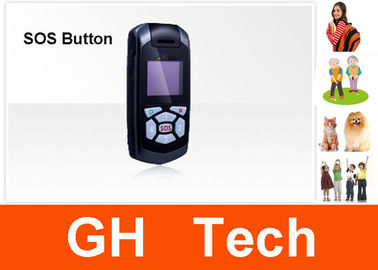

G-P300
Lone Worker and Senior Care GPS Safety Phone

Product Description:

The G-P300 is a powerful GSM/GPS safety phone designed mainly for seniors and lone workers. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, scheduled GPS position (with cell-ID reporting) and man down alert. The G-P300 also supports inbound SMS display and a configurable 20 number address book.

Features:


  • Quad band GSM/GPRS 850/900/1800/1900 MHz
  • Internal u-blox chipset
  • White OLED display (128*96)
  • Inbound SMS display and 20 number address book
  • Embedded full featured @Track protocol
  • Low power consumption, long standby time with internal battery
  • Internal 3-axis accelerometer for power conservation and motion detection including man down alert
  • Internal GSM/GPS antennas
  • CE/FCC/PTCRB/GCF certified


Specification:

GSM Specifications



Frequency

Quad band: 850/900/1800/1900 MHz
Compliant to GSM phase 2/2+
-Class 4 (2W @ 850/900 MHz)
-Class 1 (1W @ 1800/1900 MHz)

GPRS

GPRS multi-slot class 12
GPRS mobile station class B

RMS Phase Error

5 deg

Max Out RF Power

GSM850/GSM900: 33.0±2 dBm
DCS/PCS: 30.0±2 dBm

Dynamic Input Range

-15 ~ -108 dBm

Receiver Sensitivity

Class Ⅱ RBER 2% (-107 dBm)

Stability Of Frequency

< 2.5 ppm

Max Frequency Error

± 0.1 ppm


GPS Specifications



GPS Chipset

u-blox All-In-One GPS receiver

Sensitivity

Autonomous: -148 dBm
Hot start: -160 dBm
Tracking: -162 dBm

Position Accuracy

Autonomous: < 2.5m
SBAS: 2.0m

TTFF (Open Sky)

Cold start: 30s average
Warm start: < 30s
Hot start: < 1s


Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby

Interfaces


Mini USB Interface

For external power and configuration

Power Button

Power on or off device

SOS Button

SOS/Emergency alarm

Volume Adjustable Buttons

Two side buttons to increase/decrease volume

Dial, Reject Button

For dialing and rejecting incoming calls or menu selection

4 Preset Number Buttons

For quick dialing of preset numbers or menu selection


General Specifications


Dimensions

87mm*44.5mm*17mm

Weight

75g

Battery

Li- Polymer 850 mAh

Standby Time

Without reporting: 190 hours
5 minutes reporting: 110 hours
10 minutes reporting: 125 hours

Charging  Voltage

5V DC

Operating Temperature

-20℃ ~ +55℃

Display

128*96, 1.3", white OLED display


Air Interface Protocol


Transmit Protocol

TCP, UDP, SMS

Scheduled Timing Report

Report position and status according to preset time schedules

Geo-fence

Support up to 5 internal geo-fence regions

Low Power Alarm

Alarm when internal battery is low

Power On Report

Report when the device is powered on

Power Off Report

Report when the device is powered off

SOS/Emergency Alarm

SOS alarm when function key is pressed

Fall Detection

Man down alarm from 3-axis accelerometer


Factory Shows
Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby

Certificate
Cell phone tracker online 850mAh mobile phone tracker TCP UDP SMS cell phone tracker with SOS button 190 hours standby

F A Q
Q: Hello, Can you help me ? What’s a gps tracker?
A: GPS Tracker is a unit which intergrated with GPS module and GSM module,which can transmit the data to a tracking platform/server ,and then you can see your location on  the server wherever  you are,once there is a internet then you can track the unit and the keeper.
Q: How to use such a unit?
A:First of all, unfold the units pls ,then insort a SIM card into the unit where there is a SIM card slot. then turn on and get access to the platform with your username and password then the GPS Tracker for pet/cat /kids would work.
Q: What is the quality assurance?
A: 1 YEAR quality assurance
Q:Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.
