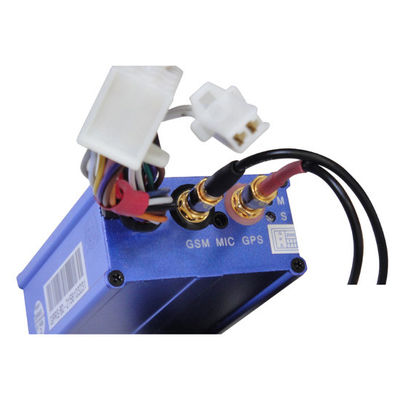

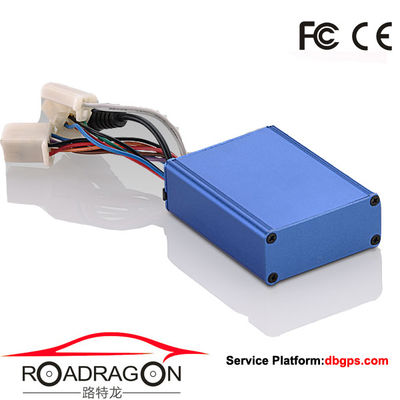

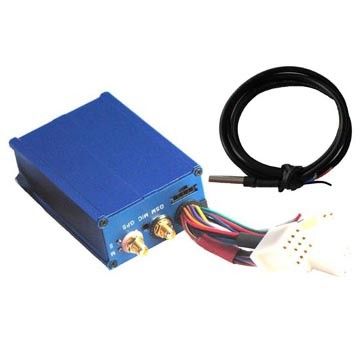

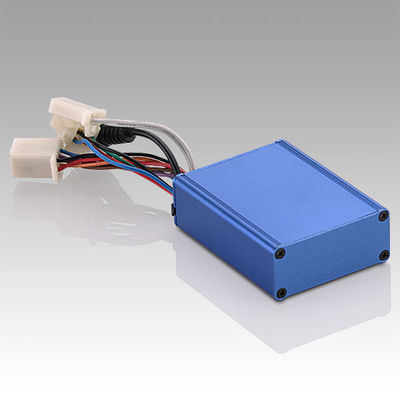

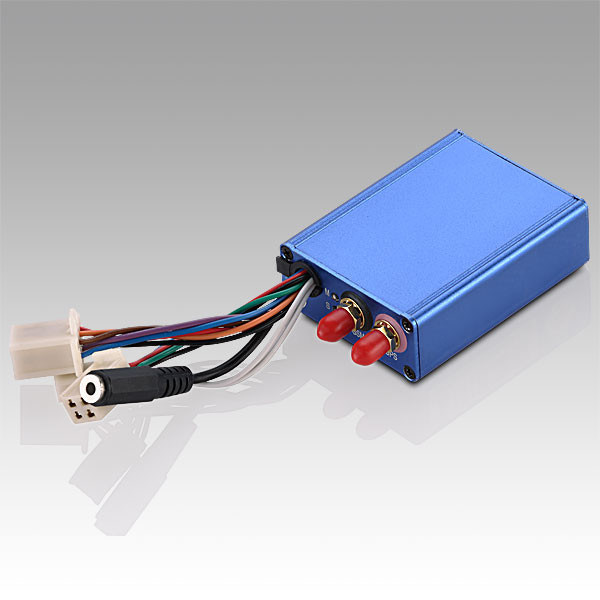

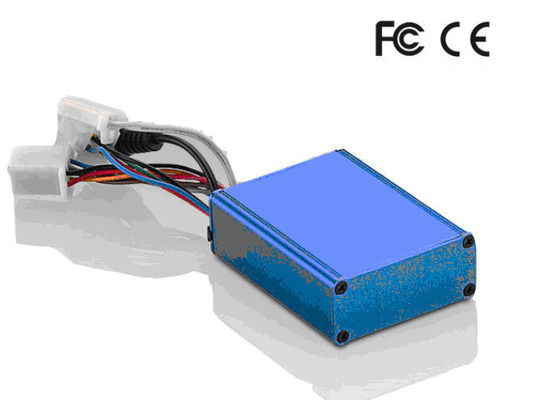

Fleet Management AVL GPS Tracker Device Aluminum Alloy With LCD Screen

China Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier
Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen supplier

Large Image :  Fleet Management AVL GPS Tracker Device Aluminum Alloy With LCD Screen

Product Details:

Place of Origin: Guangdong China
Brand Name: Dragon
Certification: CE, FCC, IP65
Model Number: G-V202

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Cardboard
Delivery Time: 5 working days
Payment Terms: Pay in advance
Supply Ability: 20K/Month
Contact Now
Detailed Product Description
Canning Material: Aluminum Alloy Dimension: 88x 62.5x 32.5mm(L X W X H)
Main Device Weight: 0.26kgnet Weight Limiting Voltage: 100V/DC
Working Voltage: 9~33 V/DC Average Working Current: 70mA DC 12V

Fleet Management  AVL GPS Tracker Device Aluminum Alloy With LCD Screen

GPS device with broad expansion ports has the features like multiple image monitoring, TTS voice repot, automatic report station, driving record (black box), LED screen to release Ads info, electronic lead sealing, temperature detecting, fuel consumption detecting, loaded detecting, operating data uploading and others.

Main Features:
  ● Based international newest chip, double core structure, powerful
  ● GPRS and SMS double channels, TCP and UDP double working mode
  ● Positioning based GPS reflected wave, assist with base station, strong capacity to prevent blocking to reduce the blind area
  ●Three proofing design, Quadruple protection for power source, 4 levels watchdog
  ● Low power consumption,
  ● Build-in high capacity backup battery.
  ● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads
  ● Build-in TTS voice module to achieve the function of voice report.
  ● It can update remotely, easy to maintain
  ● Approved by 3C, and approved by national grade quality authentication.

 Product Functions:
1.Signal detecting and control: 13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit, user-defined backup output control.
2.   Alarm: 19 alarms, 3 modes of alarm.
3.   Monitoring: vehicleautomatic tracking/monitoring, regions setting, geo-fence, GPS mileage statistics, blind area supplementary report, traces storage, base station positioning.
4.   Road detecting: road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…
5.   Voice and phone call: hands free phone, remote listen in, voice reminding device, TTS voice report.
6.  Fuel consumption detecting: build-in 2 routes AD input interface, equipped floater attenuation cable can measure fuel consumption, and equipped temperature can detect the temperature.
7.   LED screen for release Ads info:Downlink Ads to screen via RS232 port and show Ads on the screen.
8.  Image: monitor by image, store/record image, image transmission.
9.   Remote update: main device’s program was support to remote download; user can renew the program remotely.
10. Protection:
Power saving mode: in this mode, GPS device’s working current will drop to20mA@12V when vehicle was in flameout.
Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (9.5V).
Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceeds limit value (36V), backup battery can work for 3h.

Performance Parameters:
Hardware features

Remark
Hardware framework
Adopt double core chip

Communication module
GPRS, SMS double channels module

Reliability design
Quadruple protection for power source, 4 levels watchdog

PCB protection
Three proofing protection

Technical specifications


Working voltage
9~33 V/DC

Limiting voltage
100V/DC

Car battery protecting voltage
Low: 9V (12V car battery) or 20V(24V car battery)high:36V

Power voltage of Anti-reversed connection
≥100V

Average working current
70mA DC 12V

Power saving mode
<20mA DC 12V

Backup battery
Working time 3h

Dimension
88x 62.5x 32.5mm(L x W x H)

Canning material
Aluminum alloy

Main device weight
0.26kgnet weight

Interface


GPS antenna
SMA interface: -26dB  cable length: 5m

GSM antenna
SMA interface: -3dB  cable length: 3m

Vehicle detecting interface
9 routes signal input

AD detecting interface
2 routes AD signal input (for enhancement type II, III, IV)

Video interface
Serial port for video input, it can expand to 4 video input

Voice interface
2 route voice port

Data interface
2 route RS-232 serial port

Environment features


Vehicle spark noise immunity
Discharge voltage 10 kV~20 kV, discharge frequency 20 times/s~200 times/s

Electro-transient pulse noise immunity
4KV, experiment grade IV

Static discharge noise immunity
Contacting discharge 6KV, air discharge 8KV, experiment grade III

Conduction interference limits
Accord with the requirements of class B

Radiated interference limits
Accord with the requirements of class B

Temperature characteristic
Working temperature -20 ℃~+60 ℃
Limiting temperature -35 ℃~-20℃, +60℃~+70℃

Humidity
5%~95%  non-condensation

GPS features


Tracking sensitivity
-159dBm

Positioning time
Cold boot less than 34s; hot boot less than 3.5s; warm boot less than 33s, re-capture time 1.0s

Positioning accuracy
10m2D RMS

Speed accuracy
0.1m/s

BS positioning accuracy
100m

GSM/GPRS features


Frequency
EGSM900/GSM1800

Transmitting power
EGSM900:CLASS4(2W), GSM1800:CLASS1(1W)

GPRS
GPRS multi-slot class8-class 10
GPRS mobile station class B
Downlink speed: max 85.6Kbps
Uplink speed: max 42.8Kbps

Data storage


Trace record storage
50, 000 trace record

Buffer memory for supplemental report (blind area)
500 (points) tracking info

Road detecting storage
Can set 8 roads’ data, each road can be constituted by 1023 broken lines and 256 stations

Attribute areas storage
Can set 108 rectangle areas (can set 20 polygon areas)

Image storage
It can store more than 200 pictures locally

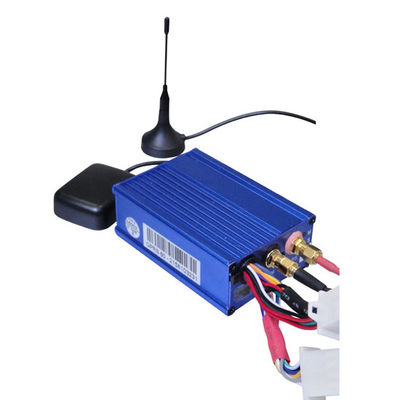

Product Configuration:
1. Standard configuration
1)       main device           1 pcs
2)       GSM antenna           1 pcs
3)       GPS antenna    1 pcs
4)       Installation cables      1 set
5)       Usage instructions
6)       Warranty card
7)        Certification
2. Optional configuration
1). Hands free speaker
2). Handset
3). Listen in mic
4). LCD
5). Accessories (relay) for cut fuel/circuit)
6). Camera
Big mother camera
Big son camera (can multi-son camera)
7) Switching cable 0740-i-46 for camera
8). Accessories for fuel detecting (floater attenuation cable)
9). Accessories for temperature detecting
