| Working Voltage: | 7～50V/DC | Working Temperature: | -20℃～+70℃ |
|---|---|---|---|
| Working Humidity: | 5%～95% | Anti-reverse Connection: | ≥80V |
| Power: | Working Status0.42 W; Sleep Mode 0.18 W | Casing Material: | Environment-friendly PVC |
| High Light: | gps avl software,avl gps tracker |
||

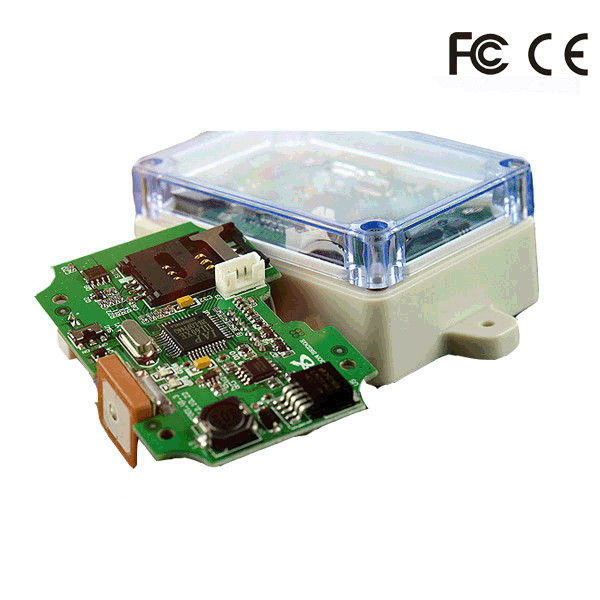

Waterproof AVL GPS Tracker System Portable Micro GPS Transmitter
This model is the GPS vehicle tracking device which designed based newest 3G(GIS, GPS, GSM) technology. Aim at market demand, combined years experiences in design, testing, production control and other sides, according with the automobile inductry’s strict requirements to vehicle electronical equipments, use reliability theory, adopt dynamic, redundancy, derating and other design methods to ensure the quality of circuit; adopt high-performanced, industrial components to ensure the quality of this model. Application fields: logistics vehicle, rental vehicle, passenger transport, freight transport, taxi, ship, bus, private car, motor and etc.
Main device technical parameters:
| Frequency | WCDMA 900/2100MHz (3G version support) |
| GSM 850/900/1800/1900MHz | |
| Networks | WCDMA/GSM/GPRS |
| Battery | 3.7V 6000mAh/10000mAh/20000mAh |
| Location time | Cold start 35s-80s |
| Hot start 1s | |
| Location accuracy | 5 meters |
| Operating temperature | -20℃~+55℃ |
| Dimension | 115*65*25mm/120*65*35mm/120*65*50mm |
| Weight | 175g/250g/365g (2G version) 192g/290g/444g (3Gversion) |
3. Product functions
◆ Real-time tracking
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Remove alert
◆ One way communication
◆ Geo-fence
◆ History Route
◆ Magnetic
◆ AGPS locating
◆ WIFI locating
① LED Indicator Definition
Green Indicator:GPRS
| Status of indicator | Meaning |
| Flash | GSM/GPRS conversation start |
| Continuously in bright status | No GPRS signal |
| Green Led off | Power off or in sleep mode |
Blue Indicator:GPS
| Status of indicator | Meaning |
| Flash | GPS location successful |
| Continuously in bright status | GPS signal searching |
| Blue led off | Power off or in sleep mode |
Red Indicator:Power charge
| Status of indicator | Meaning |
| Continuously in bright status | charging |
| Red led off | Power off or charged full |
