Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1

Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1
Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1 Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1 Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1 Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1

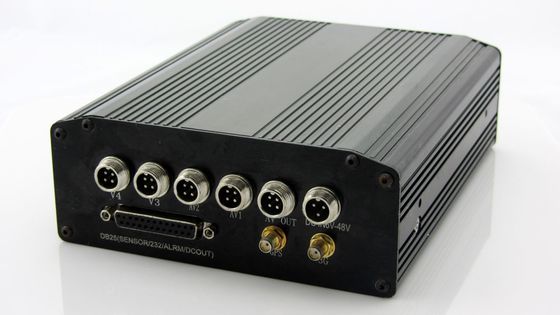

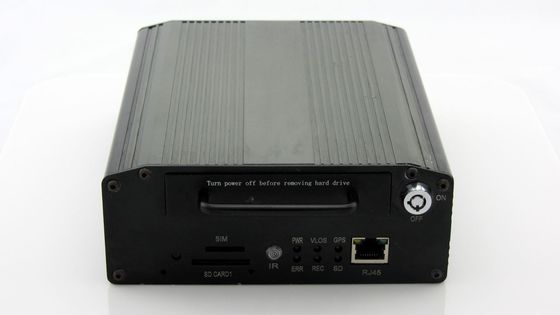

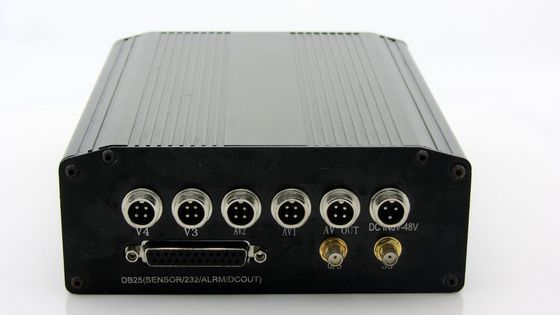

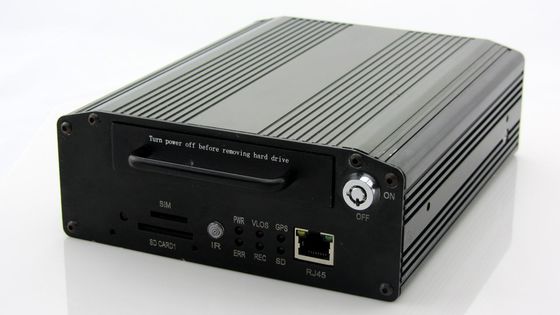

Large Image :  Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1

Product Details:
Place of Origin: China
Brand Name: Auras Sam
Certification: CE,ROHS, FCC
Model Number: ASMHDS05
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Color box
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Detailed Product Description
High Light:

Mobile Car DVR

,

4 Channel Mobile DVR



Portable GPS Mobile DVR G-Sensor Multi-stream 4 Video Support CIF HD1 D1





Quick Detail:



Feature

  GPS +Basic

Recording

Application

Bus, Business Car,

Official Car, Regular Vehicle

Video Compression

H.264 Format

with HiSilicon

High Speed

Processor

Video & Audio Input

4 Video & 2 Input

HDD Storage

Max support

1T HDD

Playback

Support CIF ,HD1 & D1

Card Storage

Support 32G,

64GB Max

Certificate

CE, RoHS, FCC

Extra Function

Support PTZ

remote control,

 LED screen

remote control,

Talkback, Broadcast

Professional Connector

 Aviation Plug





Description:



• Support multi-stream recoding, 4 video/2 audio input;

• Support HDD/SD card synchronous recording (maximum support 1T HDD and

   high-capacity SD card);

• Support super high files fragmentation clearing technology and data protection;

• Support recording vehicle information including running state, license and running route

• Support unusual reboot function, protect machines & resist data-loss preferably

• Support GPS,3G Module Optional, WCDMA/CDMA2000/TD-SCDMA optional,

  support 3G Auto Downloading, resume from breakpoint ( 4G can be updated);

• With various decoding protocol and baud rate, our products support PTZ,

  cameras and speed dome etc. Control

• With complete client Software Platform, support Real time Video view, Record, Snap,

  Replay analysis




Applications:



1. City Transportation

    Prevention for Speeding, overloading, accident disputes, passengers disputes and so on

2. Taxi Transportation

    Crime presentation, Driver protection, As an evidence of segregation responsibility

    when the event of passengers

    disputes occur

3. Long Distance Coach Transportation

    Prevention for Speeding, Overloading, Halfway Passengers get on/off Charges,

    Accident and passengers disputes

4. Logistics vehicles Transportation

    For damaged goods in transit occurs, loss and other problems, unable to

    distinguish events prove liability, logistics companies and customers

    and insurance companies often dispute the goods for compensation





Specifications:



Item

Description

Model

ASMHD05

A&V Input

4 channel, aviation   connector

A&V Output

1 channel, aviation   connector

Connection

GPS + Basic Recording

Video compression format

H.264

Resolution

D1/HD1/CIF selectable.

D1-the highest, CIF-the lowest

Video Frame rate

100 fps (PAL),120fps(NTSC),

50fps(4*D1)

Recording

Fire recording, time recording,

alarm recording

Storage

Hard drive (Support SD card recording

 synchronization)

Alarm

1CH alarm; alarm and recording

at the same time

Vehicle recording

Recording Vehicle operations

 (turn left/right, stop lamp), license NO. ,

route, driver

System Protection

Saving   the recording data

when the power off,

support hard disk upgrading

Wireless Transmission

GPRS, EDGE, CDMA, WIFI,

3G (EVDO) optional. G-sensor,

Gyro-sensor supported.

Network

RJ45 Ethernet interface and

can  copy  the  data through Wired

/Wireless networks, controlling

 and  managing  the  main machine.

GPS

Support GPS module expansion,

 recoding and playback the vehicle route

G-SENSOR Model

Support G-Sensor module expansion,

recording vehicle direction state and alarm

Battery

Wide Voltage Range; Operation voltage: 6V~48V;

 Recommend range: 8V-40V;

instantaneous range: 6-70V.

Support overvoltage protection, under-voltage

 protection, short-circuit protection,

transposition  protection, fire on/off timing,

delay power-off. Output voltage is 12v .

Powder

2.4W

System

Embedded full-time multitask control system,

 support   Chinese simplified & English

Working environment

Working temperature: -20C°to 50C°,

Working humidity: <90%;

storage  temperature: -30C to 70C,

Storage humidity<90%

Dimensions

200mm*195mm*50mm

Weight

3.3Kg





Why to choose Auras Sam This style Mobile DVR?



1. This Mobile DVR is designed for mass-market mobile monitoring design a cost-effective

    vehicle  monitoring SD recorder.

2. Wide power input, SD card, USB, use a professional and reliable air plug connector;

    support the expansion WIFI, GPS, 3G module.

3. Appearance of small simple operation and easy installation, the system is stable.

    Support mobile phone monitoring.

4. Widely used in passenger cars, buses, taxis, school buses, logistics vehicles,

    dangerous goods vehicles, private cars, and ships.





Communication with customers



A: Hello, Can you help me ? What’s the different from ASMHD05 and ASMHDGG05?

B: Dear, We are Auras Sam Technology LTD in china. Pleasure to help you.

    ASM20B just the basic version for recording,

    But ASM203GB can use the 3G SIM card for the data transmission and Real-time

    monitoring, plus the GPS can locate the vehicles precisely that can be understanded

    easily to the work fields by you. Meanwhile, the series support 2.5 inch HDD and 32G

    SD card storage at the same time  (Max suppot 1T HDD and high-capacity SD card) ..

A: well , we never had a problem with them before but we bought some from other suppliers,

    how that for quality control in your factory?

B: we have the FCC, QC and CE to inspection the Mobile DVRs and the defective rate is 0.3%.

A: How long time for 500pcs ASM601?

B: 4-12 Days is okay with laser Logo and Silk-print.

A: Which shipping partner is available to UK?

B: DHL, UPS, TNT, FEDEX, EMS and shipment by air or sea are okay. Which shipping

    cost is   cheaper and speed is good,

    i will suggestion to you. 3-4 days can arrive UK.

A: How long is your quality guarantee period

B: In usually, the DVR is 24 month.

A: Great, TKS. Do it.
