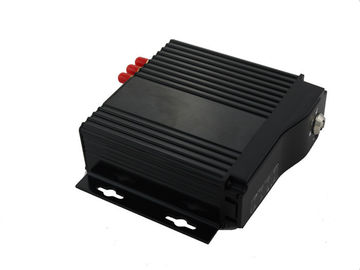

720P H.264 D1 Taxi / Car Mobile DVR 3G + Wifi + G-Sensor Aluminium CIF / 2CIF / D1 Resolution

720P H.264 D1 Taxi / Car Mobile DVR 3G + Wifi + G-Sensor Aluminium CIF / 2CIF / D1 Resolution
720P H.264 D1 Taxi / Car Mobile DVR 3G + Wifi + G-Sensor Aluminium CIF / 2CIF / D1 Resolution

Large Image :  720P H.264 D1 Taxi / Car Mobile DVR 3G + Wifi + G-Sensor Aluminium CIF / 2CIF / D1 Resolution

Product Details:
Place of Origin: China
Brand Name: BITC
Certification: ISO
Model Number: ASM3GG90W
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

Mobile Car DVR

,

mobile dvr recorders



720P H.264 D1 Taxi / Car Mobile DVR 3G + Wifi + G-Sensor Aluminium CIF / 2CIF / D1 Resolution





Quick Detail:



Feature:

  3G+Wifi+G-Sensor

 +GPS ( Recording)

Application

Bus,

Business Car,

Official Car,

Regular Vehicle

Video Compression

H.264 Format

with HiSilicon

High Speed Processor

Unique UPS

work for

10-15sec

when power

failure occurs

Card Storage

Support 32G,

 64GB Max

Extra Function

Support

3G remote

fule cut-off

and power-off

Industrial design

Aluminium

materials

Certificate

CE,

RoHS,

FCC







Description:



 •  Recording resolution: CIF/ 2CIF/ D1 optional, maximum support 2CH of D1 & 2CH of CIF;

 •  Support 2 SD Cards, 32GB for each);

 •  Support GPS, G-Sensor, Gyro-Sensor module;

 •  Support 3G remote fule cut-off and power-off and local and remote PTZ control;

 •  Unique UPS technology ensures the integrality of record when power failure occurs,

     even can work for 10-15sec

 •  Support GPS, 3G and Wifi Module Optional, WCDMA/CDMA2000/TD-SCDMA optional,

 •   support Wifi and 3G Auto Downloading, resume from breakpoint ( 4G can be updated);

 •  Industrial design; Aluminium materials, heat-proof ,damp -proof & dustproof

 •  With complete client Software Platform, support Real time Video view, Record, Snap,

    Replay analysis





Applications:



1. City Transportation

     Prevention for Speeding, overloading, accident disputes, passengers disputes and so on

2. Taxi Transportation

    Crime presentation, Driver protection, As an evidence of segregation responsibility when the

    event of passengers disputes occur

3. Long Distance Coach Transportation

    Prevention for Speeding, Overloading, Halfway Passengers get on/off Charges, Accident

    and passengers disputes

4. Logistics vehicles Transportation

    For damaged goods in transit occurs, loss and other problems, unable to distinguish events

    prove liability, logistics companies and customers and insurance companies often dispute

    the goods for compensation





Specifications:



Item

Description

Model

ASM3GG90W

Operating System

Linux (2.6)

Connection

3G+G-sensor+GPS

Video Compression

H.264 main profile

OSD

Overlays letters and log

like some date & time info

and vehicle ID into

video streaming.

GUI

Graphical User Interface

Setup system

parameters through

 the remote control.

Video and Recording

System

Video input

1-4 channels input,

4 CVBS, 1.0Vp-p, 75Ω

Video output

1CH output, CVBS,

1.0Vp-p, 75Ω,

single or quad monitor

Preview

Support 1 channel and

4 channels preview. Also

can preview through PC,

with PC Viewer software.

Recording Resolution

Support CIF, HD1,

D1 resolution optional,

maximum 2CH of

D1 & 2CH of CIF.

Video Quality

1-4 levels,

1 is the highest level ,

4 is the lowest level.

Recording

PAL: 100Frame/s ,

         CCIR625 line,50 field

NTSC: 120Frame/s,

            CCIR525 line,60 field

            CIF: 256Kbps ~ 1.5Mbps,

4 quality level support,

HD1: 600Kbps ~ 2.5Mbps,

4 quality level support

D1:  800Kbps ~ 3Mbps,

       4 quality level support

Video stream

ISO14496-10 standard

Recording Mode

Default auto recording

after power on,

support timed recording,

alarm  recording

Audio

Audio Input

Mic or line in,

up to 2

channels

Audio Output

1 channel output,

output voltage:

1V ~2V

Compression

G.726,  5KB/s

Playback

System

Video Search

Search video via time,

type(normal or alarm),

target SD card

Playback

Support 1 to 4

channels playback.

Support forward and back

at the speed of: x 2,x4,x8,x16.

Alarm

Input

Support up to 4

channels alarm

input.

Alarm recording: include the

recording within

15 seconds ahead

of the alarm starting, and

the recording after alarm

dynamically adjusted ..

Output

2Ch alarm

output,

level signal.

Communication Port

RS232 for

remote control;

RJ45

Storage

SD Card

Support 2 SD Cards,

32GB for each.

Support SD card

recycle recording.

Automatically switch

to the other SD

Card after the

one is full,

and the data will be

automatically overwritten .

Firmware upgrade

Upgrade with

SD card

File Format

ASF

File System

FAT32

Power

Power Management

System auto power on/off mode:

1, Vehicle acc on/off---

system auto power on after acc on,

system power off

according to the delay time

 (up to 240min, default 5min)

after acc off.

2, Preset time---

Only according to

time preset table.

Power Supply

DC:+8V ~ +36V

Power Output

+12V@1.5A;+5V@1.5A

Power-off data protection

All data can be saved

and the recording

files can

be closed normally

in case of power lost.

Working Environment

Temperature

-20℃ to + 70℃

Humidity

20% to 80%

Others

Dimensions

112(W) x36

(H) x138(D) mm

Net Weight

0.65g







Why to choose Auras Sam This style Mobile DVR?



1. This Mobile DVR is designed for mass-market mobile monitoring design a cost-effective

     vehicle monitoring SD recorder.

2. Wide power input, SD card, USB, use a professional and reliable air plug connector;

    support the expansion WIFI, GPS, 3G module.

3. Appearance of small simple operation and easy installation, the system is stable.

     Support mobile phone monitoring.

4. Widely used in passenger cars, buses, taxis, school buses, logistics vehicles,

     dangerous goods vehicles, private cars,  and ships.





Communication with customers



A: Hello, Can you help me ? What’s the different from ASMG90 and ASM3GG90?

B: Dear, We are Auras Sam Technology LTD in china. Pleasure to help you.

    ASMG90 just the basic version with G-sensor Function for recording,

    But ASM3GG90 can use the 3G SIM card for the data transmission and Real-time monitoring,

    plus the GPS can locate the vehicles precisely that can be understood easily to the work fields

    by you. The G-Sensor Function can protect the data in the DVR ahead. Meanwhile, the series

    support Two SD Card and 32G SD card each storage at the same time (high-capacity SD card) .

A: well ,we never had a problem with them before but we bought some from other suppliers,

    how that for quality control in your factory?

B: we have the FCC, QC and CE to inspection the Mobile DVRs and the defective rate is 0.3%.

A: How long time for 500pcs ASM601?

B: 4-12 Days is okay with laser Logo and Silk-print.

A: Which shipping partner is available to UK?

B: DHL, UPS, TNT, FEDEX, EMS and shipment by air or sea are okay. Which shipping cost is

    cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.

A: How long is your quality guarantee period

B: In usually, the DVR is 24 month.

A: Great, TKS. Do it.
