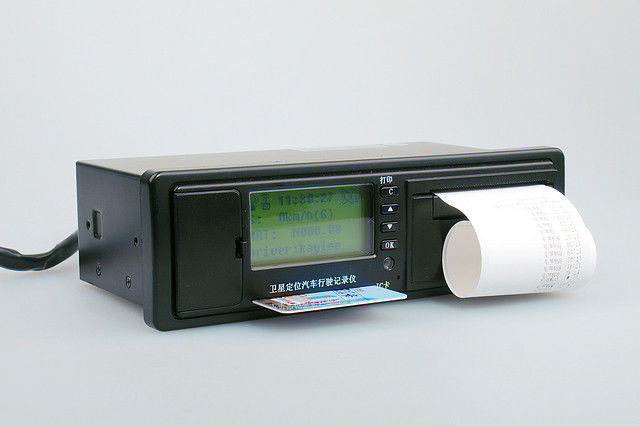

SMS Double Channels Digital Tachograph 25V With Printer Track
Quick Detail:
● Modularized function design, integrated car GPS tracking, dispatching and management…
● Integration industrial structure design, satisfy the standard of vehicle installation
● Build-in TTS voice report feature
● With SD card interface, high capacity memory to achieve video record and store video to SD card
● It can update remotely, easy to maintain
|
Hardware features
|
|
|
Hardware framework
|
Adopt 4 core chip
|
|
Communication module
|
GPRS, SMS double channels module (3Gnetwork module need purchased separately)
|
|
Printer
|
Thermosensitive printer, paper width 58mm
|
|
Display screen
|
132x64 single color lattice screen
|
|
PCB protection
|
Three proofing protection
|
|
Technical specifications
|
|
|
Working voltage
|
9～33 V/DC
|
|
Limiting voltage
|
100V/DC
|
|
Car battery protecting voltage
|
Low: 9V (12V car battery)or 20V (24V car battery)high: 36V
|
|
Power voltage of Anti-reversed connection
|
≥100V
|
|
Average working current
|
90mA DC 12V
|
|
Power saving mode
|
＜20mA DC 12V
|
|
Backup battery
|
Working time 1h
|
|
Dimension
|
140x 180x 60mm(L x W x H)
|
|
Canning material
|
Panel: industry plastic, case: electrolysis steel plate
|
|
Main device weight
|
1.52kgnet weight
|
Main Features:
● Based international newest chip, multiple core structure, powerful
● Modularized function design, integrated car GPS tracking, dispatching and management…
● Integration industrial structure design, satisfy the standard of vehicle installation
● Build-in TTS voice report feature
● With SD card interface, high capacity memory to achieve video record and store video to SD card
● It can update remotely, easy to maintain
● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads.
● Strong expansibility with module design, it can expand 3Gwireless image transmission.
Product Functions:
1.Signal detecting and control:
13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit; use-defined backup output control.
2.Alarm:
19 alarms, 3 modes of alarm.
3.Monitoring:
vehicleautomatic tracking/monitoring, region setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, trace storage, base station positioning.
4.Road detecting:
road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…
5.Voice and phone call:
hands free phone, remote listen in, voice reminds device, TTS voice report.
6.National standard/local standard:
display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.
7.Display Screen:
single color screen to display info like tracking, driving, dispatching and etc.
8.Image:
monitor by image, store image to SD card, image transmission.
9.Remote update:
main device’s program was support to remote download; user can renew the program remotely.
10.Protection:
Power saving mode: in this mode, GPS device’s working current will drop to20mA@12V when vehicle was in flameout.
Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (9.5V).
Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceed limit value (36V), backup battery can work for 3h.
Performance Parameters:
|
Interface
|
|
|
GPS antenna
|
SMA interface: －26dB
|
|
GSM antenna
|
SMA interface: －3dB
|
|
Vehicle detecting interface
|
11 routes signal input
|
|
Analog quantity interface
|
2 routes analog signal input
|
|
Output interface
|
3 routes low level output
|
|
SD card interface
|
SD memory card
|
|
Video interface
|
Serial video input, can be expanded to 4 video cameras
|
|
Voice interface
|
2 routes voice interface
|
|
Data interface
|
4 routes RS-232 serial port, 1 route USB interface
|
|
IC card
|
Contact-type driver IC card
|
|
Environment features
|
|
|
Vehicle spark noise immunity
|
Discharge voltage 10 kV～20 kV, discharge frequency 20 times/s～200 times/s
|
|
Electro-transient pulse noise immunity
|
4KV, experiment grade IV
|
|
Static discharge noise immunity
|
Contacting discharge 6KV, air discharge 8KV, experiment grade III
|
|
Conduction interference limits
|
Accord with the requirements of class B
|
|
Radiated interference limits
|
Accord with the requirements of class B
|
|
Temperature characteristic
|
Working temperature -20 ℃ ～+60 ℃
Limiting temperature -35 ℃～-20℃, +60℃～+70℃
|
|
Humidity
|
5％～95％ non-condensation
|
|
GPS features
|
|
|
Tracking sensitivity
|
－159dBm
|
|
Positioning time
|
Cold boot less than 34s; hot boot less than 3.5s; warm boot less than 33s, re-capture time 1.0s
|
|
Positioning accuracy
|
10m2D RMS
|
|
Speed accuracy
|
0.1m/s
|
|
BS positioning accuracy
|
100M
|
|
GSM/GPRS features
|
|
|
Frequency
|
EGSM900/GSM1800
|
|
Transmitting power
|
EGSM900:CLASS4(2W), GSM1800:CLASS1(1W)
|
|
GPRS
|
GPRS multi-slot class 8－class 10
GPRS mobile station class B
downlink speed: max 85.6Kbps
uplink speed: max 42.8Kbps
|
|
Data storage
|
|
|
Trace record storage
|
50, 000 trace
|
|
Buffer memory for supplemental report (blind area)
|
500 (points) positioning info
|
|
Road detecting storage
|
Can set 8 roads’ data, each road can be constituted by 1023 broken lines and 256 stations
|
|
Attribute areas storage
|
Can set 108 rectangle areas (can set 20 polygon areas)
|
|
Image storage
|
Store picture and image based the capacity of SD card
|
Product Configuration
1. Standard configuration
1)main device 1 pcs
2)GSM antenna 1 pcs
3)GPS antenna 1 pcs
4)Installation cables 1 set
5)Mounting bracket 1 set
6)Usage instructions
7) Warranty card
2. Optional configuration
1) Hands free speaker
2) Listen in mic
3) Accessories for cut fuel/circuit
4) Liquid crystal monitoring screen
5) Camera and switching cable
6) SD card
