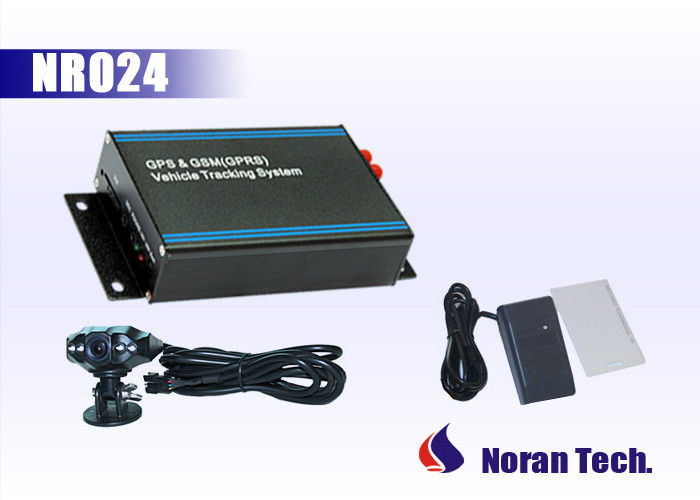

Small Online Vehicle GPS Tracker Free Website Tracking Platform Camera Tracker
Special technical service
1. All of our devices have two years warranty .
2. Help you setup your own GPS tracking system for free
3. Free server service period: 12-month
4. We accept OEM /ODM and customised orders.(logo, functions, language)
Interface
DATA1
|
No.
|
Description
|
No.
|
Description
|
|
1
|
DC+ (9~36V)
|
6
|
GND
|
|
2
|
Fuel check line
|
7
|
SOS button
|
|
3
|
GND
|
8
|
Extend port1(Assist alarm)
|
|
4
|
ACC
|
9
|
Extend port2
|
|
5
|
Engine cut_off control
|
10
|
Extend port3
|
DATA2(RS232 interface):
1-TX0 2-TX1 3-Extend 4-RX0 5-RX1 6-GND
1, SIM: Port for SIM card
2, MIC: Connect to Microphone
3, Phone: Connect to earphone
4, LED1: Status light
5, LED2: Power light
6, Reset
Installation Figure
Installation and Test:
Please test after installation. If you don’t need some functions, you can disconnect corresponding interface. Please make sure ACC, DC, GND installed correctly. Otherwise, the device cannot work. Please check the device status through signal light after power on:
- LED1 is off which indicates there is no power.
- LED2 flashes for one second which indicates GSM registers successfully.
- LED2 flashes three seconds once which indicates GPS is obtaining orientation
- LED2 is on which indicates work successfully that GSM has registered and GPS has obtained the orientation.
If LED 2 is on 0.1 second then off 0.1 second for more than 3 minutes, please make sure SIM card inserts well. Without SIM card, the device cannot work.
Specifications:
|
Size
|
137*78*29mm
|
|
Working Voltage
|
DC:6.3~40V
|
|
Input Fuse
|
5A
|
|
Working Temperature
|
-40~85°C
|
|
Humidity
|
10% to 90%
|
|
CPU
|
TI:MSP430F5419(100MHz)
|
|
GSM Module:
|
Tri-mode:850/900/1800/1900MHz
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
|
|
GPS Module
|
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
|
|
Input I/O
|
3
|
|
RS232
|
2
|
|
Microphone
|
Inside Mic without phone
|
|
earphone
|
No
|
|
Current
|
Not working Current 16mA
working Current:60~150mA
Charging current: Max<500mA
|
|
Battery
|
Lithium battery :400~800mA( working time is about 3.5~8 hours)
|
|
Accessories
|
Device, Connecting cable ,GPS antenna ,GSM antenna, Relay, Camera
|
Main features:
1. Positioning and tracking:
through the online positioning platform or the cell phone to locate at any time,
and get the working status. You can choose the positioning Platform by yourself
2. Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+
Geo info to the authorized numbers
3. Geo-Fence Mode:
Set up a geo fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
4. Fuel Monitoring:
Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)
5. Real time Track by Time/Distance Interval:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
6. Remote Self Failure Analysis:
Any error happens on the tracker, it can analysis itself and restart.
7. Image:
Camera remote take image, transmit to the server on real time, can remote see the vehicle situation
8. Remote controlling oil and circuit:
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
9. Power cut alert:
When tracker is cut off from the power, the tracker sends alert SMS to user
10. GPS & A-GPS (LBS—location based service):
Using Global Satellite Positioning technology, LBS(Location Based Service)
technology(while it’s can’t location via GPS, the devices will get the location information via LBS)
11. Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
12. SOS Function:
You can press the SOS alarm button to send an alert.
This will give the location to the registered phone numbers in case of an emergency.
The SOS function also allows you to talk into the GPS tracker & make yourself heard
on the receivers end with the mobile cell phone
13. Audio Monitor:
You can ring the GPS unit and simply listen in discreetly.(the GPS unit does not vibrate or ring )
