Protable Satellite Cell Phone GPS Tracker Wireless Realtime Positioning
World phone tracker Wifi indorr gprs powerful WiFi/GSM/GPS safety phone tracker 1000MAh 180 hours
standby phone tracker cell phone tracker free online
G-P500
WiFi/GSM/GPS Safety Phone
Attention:For this unit we do not offer platform,you need to got your own tracking server,while we can offer protocol and guide you how to analyze the protocol.
Product Description:

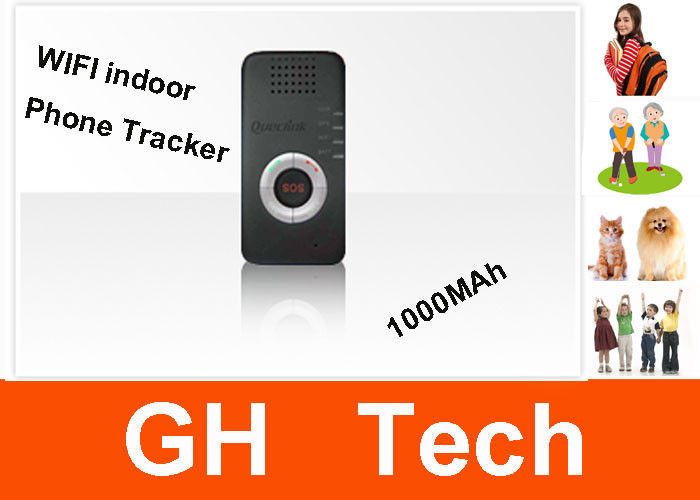

The G-P500 is a powerful WiFi/GSM/GPS safety phone. It supports indoor location using access point MAC address lookup services such as Google or Skyhook. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, scheduled GPS position (with cell-ID reporting) and man down alert.
Features:
- Indoor tracking and positioning through access point MAC address lookup services
- Outdoor tracking and positioning using internal u-blox GPS chipset and GPRS backhaul
- Low power consumption, long standby time with internal battery
- Internal 3-axis accelerometer for power conservation, motion detection and man down alert
- Internal u-blox chipset
- Internal MTK WiFi chipset IEEE 802.11b/g compliant
- Quad band GSM/GPRS 850/900/1800/1900 MHz
- Embedded full featured @ Track protocol
- Internal GSM/GPS/WiFi antennas
Specification:
GSM Specifications
|
Frequency
|
Quad band: 850/900/1800/1900 MHz
Compliant to GSM phase 2/2+
- Class 4 (2W @ 850/900 MHz)
- Class 1 (1W @ 1800/1900 MHz)
|
|
GPRS
|
GPRS multi-slot class 12
GPRS mobile station class B
|
|
RMS Phase Error
|
5 deg
|
|
Max Out RF Power
|
GSM850/GSM900: 33.0±2 dBm
DCS/PCS: 30.0±2 dBm
|
|
Dynamic Input Range
|
-15 ~ -108 dBm
|
|
Receiver Sensitivity
|
Class Ⅱ RBER 2% (-107 dBm)
|
|
Stability Of Frequency
|
< 2.5 ppm
|
|
Max Frequency Error
|
± 0.1 ppm
|
GPS Specifications
|
GPS Chipset
|
u-blox All-In-One GPS receiver
|
|
Sensitivity
|
Autonomous: -148 dBm
Hot start: -160 dBm
Tracking: -162 dBm
|
|
Position Accuracy
|
Autonomous: < 2.5m
SBAS: 2.0m
|
|
TTFF (Open Sky)
|
Cold start: 30s average
Warm start: < 30s
Hot start: < 1s
|
WiFi Specifications
|
WiFi Chipset
|
MTK MAC/BB WLAN chip
|
|
Frequency
|
2.4G–2.497 GHz
|
|
Standards Support
|
IEEE 802.11g/b compliant
|
Interfaces
|
Power Button
|
Power on or off device
|
|
Volume Button
|
Two side buttons to increase/decrease volume
|
|
Dial/Reject Button
|
Dial or reject incoming call
|
|
SOS Button
|
SOS/Emergency
|
|
Geo Button
|
For geo-fence function
|
|
User Defined Button
|
For a user-defined function such as dialing, location report, or Google link report
|
|
Mini USB Interface
|
For external power and configuration
|
|
Earphone Interface
|
For earphone
|
|
Indicator LED
|
GSM, GPS, WiFi and battery status
|
General Specifications
|
Dimensions
|
94mm*48.5mm*18mm
|
|
Weight
|
90g
|
|
Battery
|
Li-ion 1000 mAh
|
|
Standby Time
|
Without reporting: 180 hours
5 minutes reporting: 90 hours (GPRS); 40 hours (WiFi)
10 minutes reporting: 100 hours (GPRS); 50 hours (WiFi)
|
|
Charging Voltage
|
5V DC
|
|
Operating Temperature
|
-20℃ ~ +55℃
|
Air Interface Protocol
|
Transmit Protocol
|
TCP, UDP, SMS
|
|
Scheduled Timing Report
|
Report position and status according to preset time schedules
|
|
Geo-fence
|
Support up to 5 internal geo-fence regions
|
|
Low Power Alarm
|
Alarm when internal battery is low
|
|
Power On Report
|
Report when the device is powered on
|
|
Power Off Report
|
Report when the device is powered off
|
|
SOS/Emergency Alarm
|
SOS alarm when function key is pressed
|
|
Motion Detection
|
Motion alarm based on built-in 3-axis accelerometer
|
|
Fall Detection
|
Man down alarm based on built-in 3-axis accelerometer
|
Factory Shows
Certificate
F A Q
Q: Hello, Can you help me ? What’s a gps tracker?
A: GPS Tracker is a unit which intergrated with GPS module and GSM module,which can transmit the data to a tracking platform/server ,and then you can see your location on the server wherever you are,once there is a internet then you can track the unit and the keeper.
Q: How to use such a unit?
A:First of all, unfold the units pls ,then insort a SIM card into the unit where there is a SIM card slot. then turn on and get access to the platform with your username and password then the GPS Tracker for pet/cat /kids would work.
Q: What is the quality assurance?
A: 1 YEAR quality assurance
Q:Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.
