Product Details:
Payment & Shipping Terms:
|
Type: | Vehicle Gps Tracker | Tracking Platform: | Free |
---|---|---|---|
Gps Chip: | Sirf Star 4 | Camera: | Support |
Map: | Google Map | SOS Alarm: | Support |
Highlight: | vehicle car gps tracker,vehicle gps tracking device |

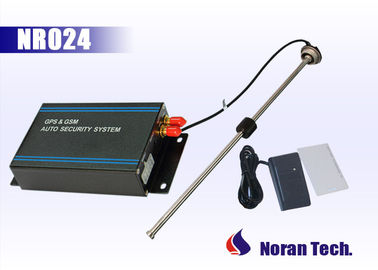

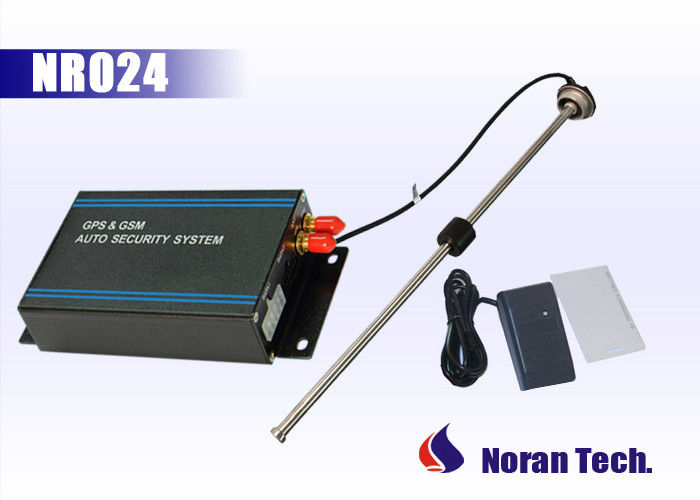

Magnetic Gps Vehicle Tracker Support Camera RFID / SOS / Remote Shutdown
Noran gps tracker main Features:
1. Real time uploads location information via time/distance interval
2. Image transmit
3. Real-time Positioning & Tracking
4. SOS emergency Alert & Power-cut Alert
5. Audio Monitoring(listen-in)
6. Geo-fence Alert & Over Speed Alert
7. Fuel Monitoring
8. 5inch touch screen for navigation
9. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
10. Car Door Open/Closed, Air-conditioner ON/OFF Detection
11. GPS & LBS(location based service) tracking
12. Support RFID for school bus and driver identification
13, Remote Stop Engine
Noran gps tracker optional funcations:
1. Add flash memory
2. Support 2 fuel sensors at most
3. Add buzzer
4. Support TCP/UDP protocol
5. Support customized firmware
6. Support 2 cameras at most
7. Support fuel theft early sound/light warning
8. Support vibration sensor
9. Support fuel anti-theft alert
10. Support RFID Reader
Specifications:
Size |
137*78*29mm |
Working Voltage |
DC:6.3~40V |
Input Fuse |
5A |
Working Temperature |
-40~85°C |
Humidity |
10% to 90% |
CPU |
TI:MSP430F5419(100MHz) |
GSM Module: |
Tri-mode:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
GPS Module
|
GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
Input I/O |
3 |
RS232 |
2 |
Microphone |
Inside Mic without phone |
earphone |
No |
Current |
Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
Battery |
Lithium battery :400~800mA( working time is about 3.5~8 hours) |
Accessories |
Device, Connecting cable ,GPS antenna ,GSM antenna, Relay, Camera |
Main features:
1. Positioning and tracking:
through the online positioning platform or the cell phone to locate at any time,
and get the working status. You can choose the positioning Platform by yourself
2. Over Speed Alert:
When the target moves exceeding a preset speed the unit will send an SMS+
Geo info to the authorized numbers
3. Geo-Fence Mode:
Set up a geo fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
4. Fuel Monitoring:
Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)
5. Real time Track by Time/Distance Interval:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
6. Remote Self Failure Analysis:
Any error happens on the tracker, it can analysis itself and restart.
7. Image:
Camera remote take image, transmit to the server on real time, can remote see the vehicle situation
8. Remote controlling oil and circuit:
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
9.Power cut alert:
When tracker is cut off from the power, the tracker sends alert SMS to user
10. GPS & A-GPS (LBS—location based service):
Using Global Satellite Positioning technology, LBS(Location Based Service)
technology(while it’s can’t location via GPS, the devices will get the location information via LBS)
11.Auto track:
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
12. SOS Function:
You can press the SOS alarm button to send an alert.
This will give the location to the registered phone numbers in case of an emergency.
The SOS function also allows you to talk into the GPS tracker & make yourself heard
on the receivers end with the mobile cell phone
13. Audio Monitor:
You can ring the GPS unit and simply listen in discreetly.(the GPS unit does not vibrate or ring )
