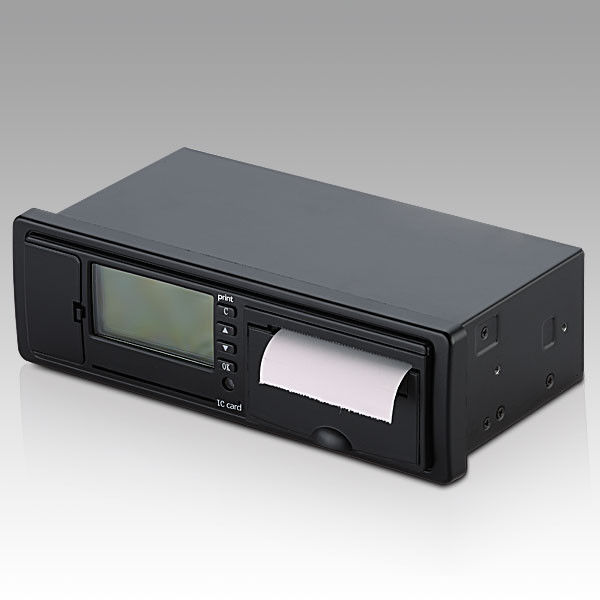

Digital Car GPS Tracker GPS Driving Recorder Terminal With TTS Speech Broadcast
Integrated GPS positioning, traffic black box, data printer, driving recorder, TF card surveillance image recorder, IC card reader, USB interface, multi-channel data serial port, the built-in microphone and speaker, LCD Screen for setting and displaying, all can combination configuration. Vehicle standard installation structure design, integration structure, eases of installation.
Highlights
◆ Standard car installation structure
◆ Modular function design, truly integrated GPS vehicle monitoring, control and manage all functions
◆ With TF card interface, large capacity storage space can realize TF card image recorder
◆ Anti-corrosion and shock resistant PCB design.
◆ Build-in TTS speech broadcast
◆ 128x64 dot matrix LCD screen, more information display.
Feature
◆ Real-time GPS tracking
◆ Real-time vehicle status monitoring
◆ Vehicle Immobilization Control
◆ GPS mileage report and mileage pulse report
◆ Accident doubtful points and record analyzing function
◆ Blind area data storage, up to 50,000 data log capacity
◆ Geo-Fence with 108 rectangle area
◆ Fleet management, 8 routes of vehicle tracking
◆ Two audio interfaces for microphone and handset
◆ Rich smart interface, can realize the automatic bus stops, the LED screen advertisement issue.
◆ Build-in printer for vehicle information printing
◆ The driver IC card identification
◆ More I/O interfaces for 19 User-Defined Report Alarm
◆ Build-in voice prompt and TTS speech broadcast
◆ large capacity TF storage for image recorder
◆ Smart power protection
◆ Remote firmware upgrade via GPRS
◆ Dual data communication capability through GPRS and SMS
◆ TCP/UDP dual mode communication
Specifications
|
GSM/GPS module performance
|
Dual-Band 900Mhz,1800Mhz
2 watts EGSM(GSM900 class 4)
1 watts GSM1800(DCS1800 class 1)
GPRS class 10
|
|
GPS Chipset
|
U-Blox high sensitivity chipset
|
|
GPS Sensitivity
|
-159dB
|
|
Channels
|
20/50 channel all-in-view tracking
|
|
Dimension
|
178x50x145mm(Universal size; 1 din)
|
|
Weight
|
1320g
|
|
Working Voltage
|
DC 9V~33V
|
|
Normal power consumption
|
70mA (Power Saving Mode<20mA)
|
|
Working Temperature
|
-20℃~+60℃
|
|
Working Humidity
|
5%~95% RH
|
|
Antenna
|
GPS SMA connection,-26db
GSM SMA connection,-3db
|
|
Printer
|
Thermal with 58mm paper width
|
|
Display
|
128x64 dot matrix LCD screen
|
|
Interface
|
9 Digital Inputs
1 relay output
4 output
4 RS232 interface(max 3 cameras or other accessories)
1 485 interface
2 analog inputs with adjustable scaling factor
1 USB interface
1 TF slot (Max16G)
1 audio interface
|
Main device and Standard accessories:
-G-V300/V301 main unit
-GPS antenna
-GSM antenna
- I/O/power combined cable
- Speaker
- build in printer
Optional accessories:
- Immobilization relay
- LCD display
- Camera
- Handset
- Fuel sensor
