Payment & Shipping Terms:
|GPS Chip:||UBLOX CHIP||GPS Accuracy:||5m|
|Antenna:||External GPS &GSM|
car tracking device,
wireless GPS Tracker
Suitable for cars, vans, trucks, bikes, etc.
You this Purchase is Real Time GPS Vahicle Tracker Drive Include Free Use Latest GPS Tracker Software.
No Contract, No Activation Fee, No Software use Fee.
Can Remote control car power and oil.
More safety and convenience, by (running on a personal computer) remote control software can cut off the vehicle oil and the circuitalso can be connections the original vehicle are vibration sensors and automotive door control switch.
It can help you track anything such as your car, boat and other vehicle in time. You will not worry about losing them forever.
It is working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. Please visit my store to buy it now.

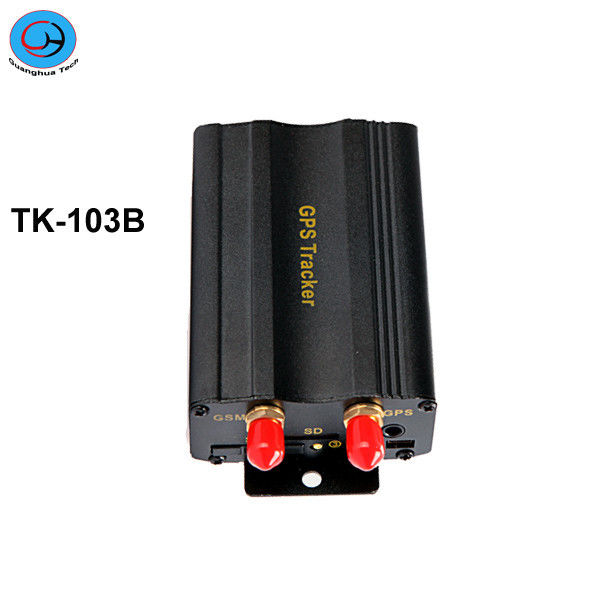

Main Functions of TK103B:
2.Auto track continuously
a. Track with limited times upon time interval
b. Track with unlimited times upon time interval
c. Smart track upon time and distance interval
3.Automatic update positions of vehicle turns
4.GPS drift suppression.
This function is deactivated as default, send "suppress+password" to tracker, it will reply" suppress drift ok".
The GPS data stop updating if vehicle is not driving (ACC is OFF) and latitude and longitude always keep same,
and GPS data updates automatically when vehicle is moving.
5.Absolute street address by SMS
6.Location based service (LBS)
10.Forward the third parties' message
13.Alarms--Low Battery Alarm, Power Off Alarm, GPS Blind Alert.
18.Accident alarm (Optional)
When tracker detects accident occurred (severe impact), it will send " Accident! + latitude & longitude " to all authorized
19.ACC working alarm
20.Cut off the Oil and Power System
a. Set up arm by SMS
b. Set up arm by remote controller
a. Disarm by SMS
b. Disarm by remote controller(4 buttons include in B version)
23.Alarms under Arm State--Door alarm, Shock Sensor alarm, ACC alarm
a. Set up silent mode by SMS
b. Set up silent mode by remote controller
25.Alarm without GSM network service
26.Check the Vehicle State.
27.Reset Hardware--SMS Reset and Reset Button to Reset
28.Terminal (local) Time Setting
30.Configure parameters by USB
If you want to order a configure cable for the device, you can visit our ebay store
31.GPRS Setting-Configure APN, GPRS User Name and password Setup, IP and Port Setup
32.Less GPRS traffic
33.Modes Switch between "SMS" and "GPRS"
34.Set up monitor center number
35.SD card slot
1. Data logging
a. Auto logging: When the tracker device lost GSM signals or fall offline from GPRS, tracker will log the tracking position and alerts automatically in the SD
b. Logging upon times: Send SMS: “save030s005n+password” to the tracker unit, it will reply “save ok”, and will log the lat, long locations every 30 seconds
c. Multi-logging: Send SMS: ”save030s***n+password” to tracker device, it will reply “save ok”.
d. Logging Clearance: send SMS: “clear+password” to tracker device, it will reply “clear ok”.
e. Logging Volume: It depends on the capacity of the SD card inserted in the tracker device.
2. Data Load
a. Current date Load: Send SMS: “load+ password” to tracker device, it will reply: “load ok” if the device is working well under GPRS mode; if not, it will reply
b. Specified date Load: Send SMS: “load+ password+ space+ year month date” to tracker device, it will reply: “load ok” and load the tracking data to the
a. Send SMS "forward+password+space+third parties phone number" from authorized phone number, tracker will reply"forward ok", and supports 1 third
parties phone numbers at most.
For example, set the phone number of the service provider of the simcard in the tracker, when charge remind message coming in, tracker will forward it to
authorized phone number.
b. Cancel: Send SMS command "noforward+password".
4. Multi-area management
a. Set Area
Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to tracker(distance unit: M for meter, K for kilometer), it
will reply "area01 ok".
Example: Send "area123456 22.353648,113.543678 school,800M".
Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2 commands, and different areas can't cover each
2.GPS TRACKER GPS103B
3.4 button remote control
4.GPS Antenna 3 meters long
5.GSM Antenna 3 meters long
7.Plug 10 PIN
9.User Manuals (English)
