900MHz Two Ways Communication GPRS GSM Vehicle AVL GPS System Tracker

900MHz Two Ways Communication GPRS GSM Vehicle AVL GPS System Tracker
900MHz Two Ways Communication GPRS GSM Vehicle AVL GPS System Tracker

Large Image :  900MHz Two Ways Communication GPRS GSM Vehicle AVL GPS System Tracker

Product Details:
Place of Origin: China
Brand Name: BITC
Certification: ISO
Model Number: G-V201H
Category: CCTV Monitor
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description

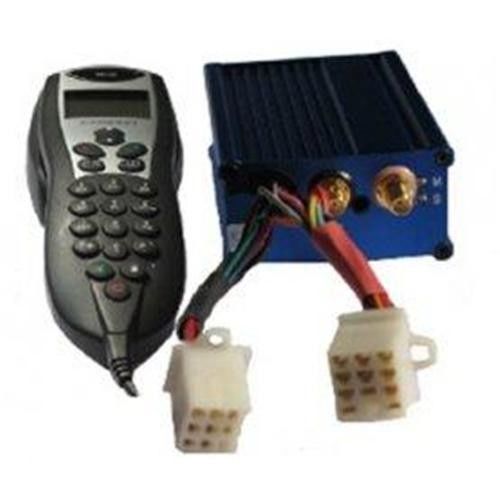

900MHz Two Ways Communication GPRS GSM Vehicle AVL GPS System Tracker Application fields: Private car, Taxi, Commercial vehicle and etc. Capability feature: Adopt industrial grade GSM communication module group, 50 channels positioning, Support 8-36V wide Voltage, High voltage protection, Small volume, easy to install, Steady Capability , Resistance to power source reverse connect, resistance to static , electromagnetism compatible, vibration endurable. Standard configuration: GPS Main Device, GPS Antenna, GSM Antenna, Handset, Cables, Panic Button, Lock Vehicle relay, Monitor Mic. Parameters index GPS device technical parameters: Working voltage:8-36V/DC (limit voltage 100V) Resistance to power source reverse connect: ≥80V Working current:average 110mA @ DC 12V;power save status<45mA @ DC 12V Power:Working status 1.2w;sleeping mode 0.7w Exterior dimension:114×62.1×33.2mm (L×W×H) (aluminium alloy crust) Weight:0.32kg (main device net weight) Communication mode:GSM/GPRS/CDMA Support frequency band: 850MHz/900MHz/1800MHz/1900MHz Working temperature:-20 to +60 centidegree Working humidity:5%-95% Inside battery charge time:3-4 Hours Inside battery working time:3-5 Hours Handset technical parameters: Working voltage: 5V/DC Working current: 86mA Size: 160×55×23mm(L×W×H) Weight: 0.217Kg Dot matrix: 128×64 Product functions: Remote control, parameters setting:surveillance center can control the vehicle remotely and alter the relevant parameters which GPS device set. Positioning (Global satellite positioning, Target positioning):it can real time know the location of the target if installed this device. Target tracking: surveillance center can real time track the target. Supplementary report: when target out of the area where haven't GSM signal, it will send the data to surveillance center automatically. SOS, mute listening:user can press SOS if they need help, then there is an alarm will be send immediately, surveillance center can listen in the condition inside vehicle it it was authorized, and help user to solve the event. Remove alarm:when there is an alarm, surveillance center can remove alarm after the event was solved. GPS open circuit alarm:when GPS antenna was damaged unwittingly or by act of man, it will send a GPS open circuit alarm to surveillance center. Overspeed alarm:when the speed of vehicle exceed the value that manager set, it will send a overspeed alarm to surveillance center. Alarm of Off-course:when vehicle deviate the travel route manager set, GPS device will generate an alarm automatically and send to surveillance center. Main power lost alarm, low battery cell voltage alarm:when vehicle battery can not supply power normally due to damaged or loss (voltage less than 0.7V), the backup battery inside the device will supply power for GPS device, and send an alarm to surveillance center to ask for solve the problem. Enter limit area alarm:when vehicle enter into the prohibited area manager set, GPS device will send this alarm to surveillance center. Out-of-range alarm:when vehicle left the driving area manager set, GPS device will send this alarm to surveillance center. Stolen alarm:when vehicle be stolen, GPS device detect the signal from the anti-theft alarm system which installed in vehicle, it will send stolen alarm immediately. Replay history data:surveillance center can view and play the history track of vehicle. Cut fuel/circuit:manager can ask surveillance center to cut vehicle's fuel/circuit to stop the vehicle surveillance center when vehicle be stolen. Restore fuel/circuit:after fuel/circuit was cut, manager can ask surveillance center to restore fuel/circuit, then vehicle can be start and drive normally. Timing registry:GPS terminal connect GPRS network periodically to ensure data transmission smoothly. GPRS + SMS:GPS device support GPRS and GSM data transmission at the same time, it can ensure the positioning data do not be lost. Manual set function:installation personnel or mainteinance personnel can se
