16 Channel H.264 Digital Video Recorder HDMI Output 1920x1080 Resolution

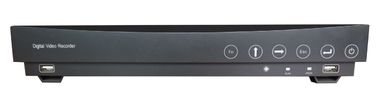

Large Image : 16 Channel H.264 Digital Video Recorder HDMI Output 1920x1080 Resolution

Product Details:

Place of Origin:	China
Brand Name:	Kimpok
Certification:	EC/FCC/ROHS
Model Number:	KP-SD20

Payment & Shipping Terms:

Minimum Order Quantity:	1pieces
Price:	Negotiation
Packaging Details:	export packing standard
Delivery Time:	5 working days after received the payment
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Frequency::	138-4400MHz (available)	RF Power Output:	15W
A/V Interface:	RCA	DC Input:	DC12V-DC14V
Casing Protection:	IP66 (dustproof, Rainproof)	Weight:	2.3kg
Resolution:	1280*720
Highlight:	4CH Digital Video Recorder , Surveillance Video Recorder

High Powered 2.4Ghz COFDM Transmitter , Rainproof Manpack Video Sender Wireless

Wireless Video Sender Introduction:

This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and MPEG-4 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with two cooling fans.Be safety with AES128/256bits.Can work well in fast-moving transmission.

Special Feature:

COFDM modulation, Stable transmission
MPEG-4/H.264 video compression, DVD video quality
Strong casing with built-in two cooling fans
Mobile and NLOS transmission
Great security by encryption of AES 128 bits
Low system latency
Modular design, compact structure, OEM design
Can be customized to add additional features

Features:

COFDM modulation, Stable transmission
MPEG-4 video compression, DVD video quality
Military aluminum housing ,Strong casing with built-in two cooling fans
Mobile and NLOS(Non line-of-sight) transmission
Great security by encryption of AES 128 bits
Low system latency
Modular design, compact structure, OEM design
Several wavebands available: VHF/L/ S
Can be customized to add additional features,such like HD/HD-SDI, data port, Ehernet and etc..

Specifications:

Modulation	CODFM
DC input	DC12V-DC14V
Working Current	≤4.7A@DC12V
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Carrier	2K
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Frequency	138-4400MHz (available)
RF power output	15W
A/V interface	RCA
RF interface	N type
Flatness	≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic	1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	MPEG-4/H.264
Resolution	1280*720
Video Rate	6Mbps
Casing Protection	IP66 (dustproof, rainproof)
Work environment	-30~70°
Dimension	22014060MM
Weight	2.3kg

16 Channel H.264 Digital Video Recorder HDMI Output 1920x1080 Resolution 0
COFDM Video Transmitter Application:

This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.

1) Manpack--vehicle

AV COFDM Video Transmitter , 15W High Power Wireless Video UGV Sender

2) Vehicle---fixed station
